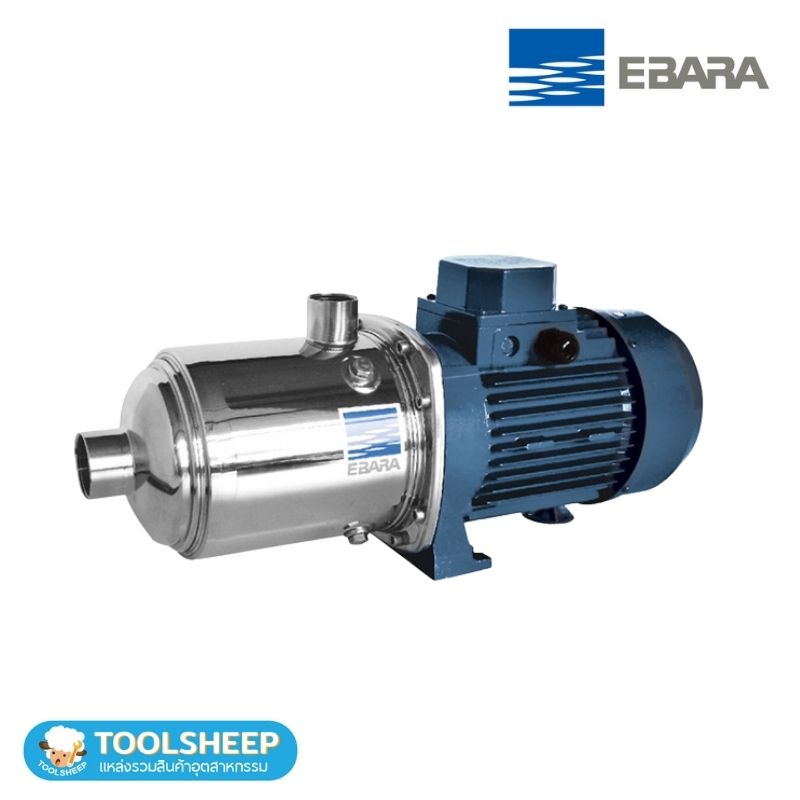

ปั๊มน้ำหอยโข่ง EBARA รุ่น MATRIX Series

ปั๊มน้ำ EBARA รุ่น MATRIX Series ใบพัดปั๊มน้ำเป็นแบบ Closed เหมาะสำหรับการใช้งานกับน้ำ, สารเคมีที่มีฤทธิ์กัดกร่อนเล็กน้อย, น้ำผสมไกลคอล และของเหลวที่มีความหนืดปานกลาง ให้ประสิทธิภาพสูงใน รองรับอุณหภูมิ -15°C ถึง +110°C

ขอใบเสนอราคา/Request a quote
สนใจสั่งซื้อสินค้าติดต่อ

ข้อมูลเพิ่มเติม

EBARA รุ่น MATRIX Series

ปั๊ม EBARA MATRIX Series ถูกออกแบบมาเพื่อรองรับการใช้งานที่ต้องการการถ่ายโอนของเหลวที่มีอุณหภูมิสูงและสารเคมีที่มีฤทธิ์กัดกร่อนเล็กน้อย มีความทนทานสูงและความสามารถในการทำงานที่หลากหลาย



Features

  • สามารถใช้งานกับน้ำ, สารเคมีที่มีฤทธิ์กัดกร่อนเล็กน้อย, น้ำผสมไกลคอล และของเหลวที่มีความหนืดปานกลาง
  • อุณหภูมิการทำงานตั้งแต่ -15°C ถึง +110°C
  • ใบพัดปั๊มเป็นแบบ Closed centrifugal type
  • วัสดุที่ใช้ในตัวปั๊มมีความทนทานสูง EN 1.4301 (AISI 304) และ EPDM
  • มอเตอร์มีระดับประสิทธิภาพ IE2 หรือ IE3 ตามประเภทของมอเตอร์



Performance

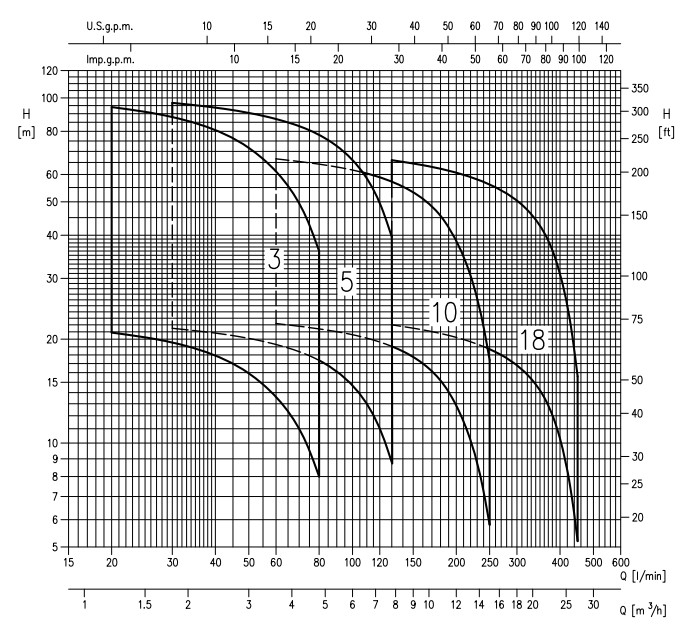

Performance MATRIX

Specification

PUMP
Liquid Handled Type of liquid Water, moderate aggressive solutions, glycol solutions, moderate viscous fluids
Temperature [°C] min.  -15
max. +110
For full details see section “FLUID TEMPERATURE RANGE”
Max chlorine content 500 ppm
Maximum working pressure [MPa] 1
Construction Impeller Closed centrifugal type
Motor bearings Screened ball bearing – greased for life
Pump bearings n° 7-8-9 impellers (Matrix 3-5)
n° 6 impellers       (Matrix 10)
n° 5-6 impellers    (Matrix 18)
Type: Sleeve
Shaft sleeve: Tungsten Carbide
Bearing: Ceramic
Pipe Connection Suction G 1″ G 1″¼ G 1″½ G 2″ (Matrix 3)
(Matrix 5)
(Matrix 10)
(Matrix 18)
UNI ISO 228
UNI ISO 228
UNI ISO 228
UNI ISO 228
Discharge G 1″
G 1″ G 1″¼ G 1″½
(Matrix 3)
(Matrix 5)
(Matrix 10)
(Matrix 18)
UNI ISO 228
UNI ISO 228
UNI ISO 228
UNI ISO 228
Material Casing EN 1.4301 (AISI 304)
Impeller EN 1.4301 (AISI 304)
Intermediate casing EN 1.4301 (AISI 304)
O-Rings EPDM
Shaft seal Ceramic / Carbon / EPDM
Liner ring EN 1.4301 (AISI 304) + PPS
Casing cover EN 1.4301 (AISI 304)
Shaft EN 1.4301 (AISI 304) wet extension
Bracket EN AB-AISi11Cu2(Fe) (Die cast Aluminium)
Applicable standard of test ISO 9906:2012 – Grade 3B



MOTOR
Type Electric – TEFC
Single Phase Three Phase
Efficiency level (Reg. 1781/2019) IE2 IE3
No. of Poles 2
Rotation speed                             [min-1] » 2850
Insulation Class F
Max temperature environment     [°C] 40
Protection degree (CEI EN 60034-5) IP 55
Power rating [kW] 0.45 ÷ 2.2 0.45 ÷ 4.0
[HP] 0.6 ÷ 3.0 0.6 ÷ 5.5
Frequency                                    [Hz] 50
Voltage                                         [V] 230 ±10% 230/400 ±10%
Capacitor Built in
Overload protection Built in Provided by the user
Casing material Aluminium
Base material / Motor support Aluminium
Dimensions of cable entry PG11 – M20x1.5 PG11 – PG13.5 M16x1.5 – M20x1.5

Pump type Q=Capacity
l/min       0 20 30 45 60 80 100 130 160 200 250 300 350 400 450
Single phase Three phase m3/h       0 1.2 1.8 2.7 3.6 4.8 6 7.8 9.6 12 15 18 21 24 27
H=Total manometric head in meters
3-2(.)/0.45M 3-2(.)/0.45 22.6 20.9 19.6 17 13.6 8
3-3(.)/0.65M 3-3(.)/0.65 33.9 31.4 29.3 25.5 20.4 12
3-4(.)/0.65M 3-4(.)/0.65 45 42 39.1 34 27.2 16
3-5(.)/0.75M 3-5(.)/0.75 56.5 52.5 49 42.5 34 20
3-6(.)/0.9M 3-6(.)/0.9 68 62.5 58.5 51 41 24
3-7(.)/1.3M 3-7(.)/1.3 79 73 68.5 59.5 47.5 28
3-8(.)/1.3M 3-8(.)/1.3 90.5 83.5 78 68 54.5 32
3-9(.)/1.5M 3-9(.)/1.5 102 94 88 76.5 61 36
5-2(.)/0.45M 5-2(.)/0.45 23 21.5 20.5 19.3 17.4 14.7 8.8
5-3(.)/0.65M 5-3(.)/0.65 34.5 32.3 30.7 29 26 22 13.2
5-4(.)/0.9M 5-4(.)/0.9 46 43 41 38.6 34.7 29.4 17.6
5-5(.)/1.3M 5-5(.)/1.3 57.5 54 51 48.5 43.5 36.7 22
5-6(.)/1.3M 5-6(.)/1.3 69 64.5 61.5 58 52 44 26.4
5-7(.)/1.5M 5-7(.)/1.5 80.5 75.5 72 67.5 61 51.5 30.8
5-8(.)/2.2M 5-8(.)/2.2 92 86 82 77 69.5 58.5 35.2
5-9(.)/2.2M 5-9(.)/2.2 104 97 92 87 78 66 39.6
10-2(.)/0.75M 10-2(.)/0.75 24 22.2 21.4 20.6 19.1 17 12.8 5.8
10-3(.)/1.3M 10-3(.)/1.3 36 33.3 32.1 30.9 28.6 25.5 19.3 8.7
10-4(.)/1.5M 10-4(.)/1.5 48 44.5 43 41 38.1 34 25.7 11.6
10-5(.)/2.2M 10-5(.)/2.2 60 55.5 53.5 51.5 47.5 42.5 32.1 14.5
10-6(.)/2.2M 10-6(.)/2.2 72 66.5 64.5 62 57 51 38.5 17.4
18-2(.)/1.5M 18-2(.)/1.5 24.2 22 21.3 20.2 18.7 16.8 14.2 10.3 5.2
18-3(.)/2.2M 18-3(.)/2.2 36.3 33 31.9 30.4 28.1 25.2 21.3 15.5 7.8
18-4(.)/3 48.5 44 42.5 40.5 37.4 33.6 28.4 20.6 10.4
18-5(.)/4 60.5 55 53 50.5 47 42 35.5 25.8 13
18-6(.)/4 72.5 66 64 60.5 56 50.5 42.5 30.9 15.6
